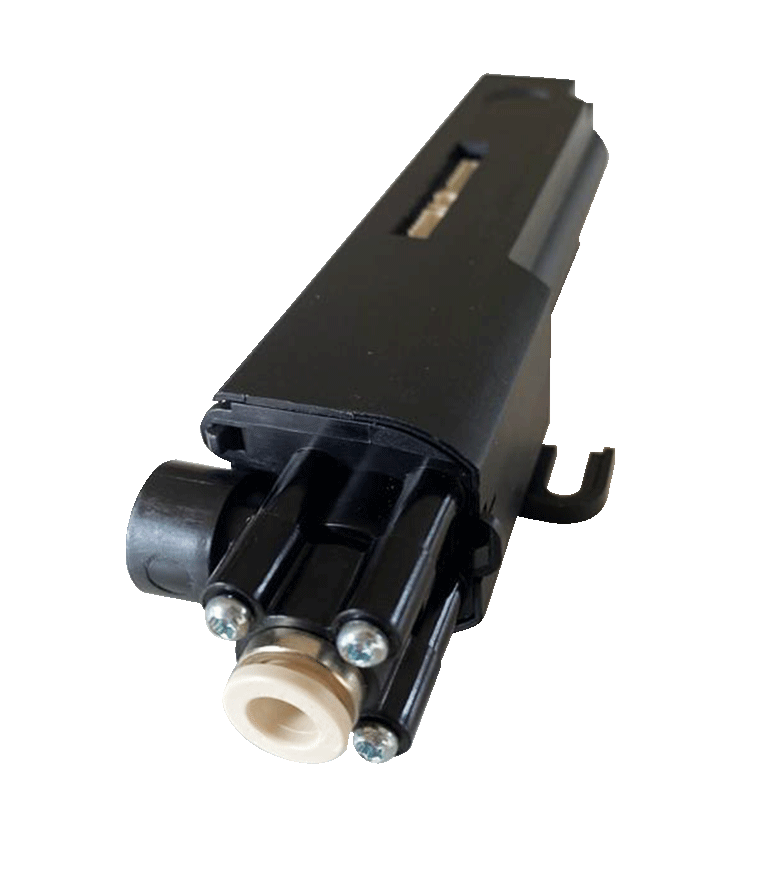

Smart HP air valve

Valvola Smart HP Air

The Smart HP Air valve is a 2-way, normally closed, full-separation valve with on/off and proportional closed-loop control.

These valves are the perfect solution for dosing or dispensing gas with high precision and no drift over time.

The Smart HP valve has a very low power consumption, up to 20 times lower than conventional solenoid valves, and silent operation. It can also be directly interfaced to external pressure, flow or temperature sensors so that it can be closed-loop controlled to the target fluid dynamic function.

Each valve can be easily customised to meet the most stringent functional requirements of different applications, in terms of electronic and mechanical interface, fluidic performance and control electronics and communication on IoT platforms.

Image 3

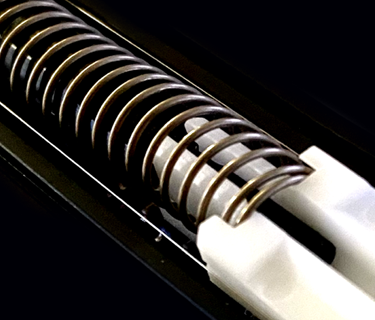

Shape memory actuator for accurate control of valve opening and closing.



Totally silent operation.

Fascione 2

32-bit microprocessor with built-in memory for closed-loop proportional air or gas control.



Customisation of control firmware to suit the application

Fascione 3

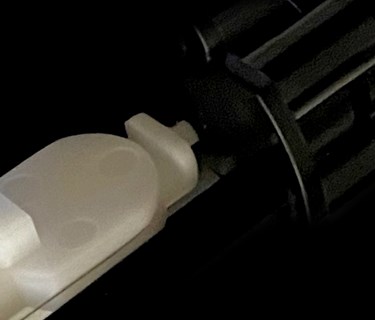

Full-seal gasket ensuring a perfect seal and a high level of valve hygiene

Fascione 4

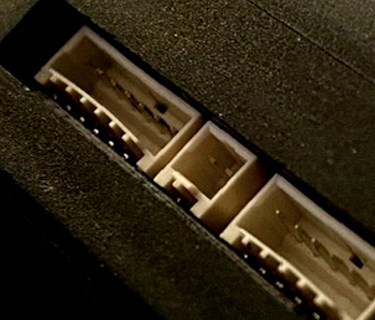

Hardware interface for external sensors to enable control loop closure on physical quantities in the circuit.

Stability and accuracy over time

Fascione 5

Air filter integrated in valve structure

Technical information

Air / Gas

Liquid

Pressure range (min ΔP - max ΔP)
0 - 4 bar
Flow
0 – 30 l/min @1 bar
Control
​ Proportional in closed loop
Operating voltage
5 - 24 VDC
Communication and user interface
Analog, PWM, RS-485, I2C, Status Led
Pressure range (min ΔP - max ΔP)
0 - 20 bar
Flow
0,05 (m3/h)/√bar
Control
Proportional in closed loop
Operating voltage
5 - 24 VDC
Communication and user interface
Analog, PWM, RS-485, I2C, Status Led
