EAV valve

Valvole Fluidoche Proporzionali

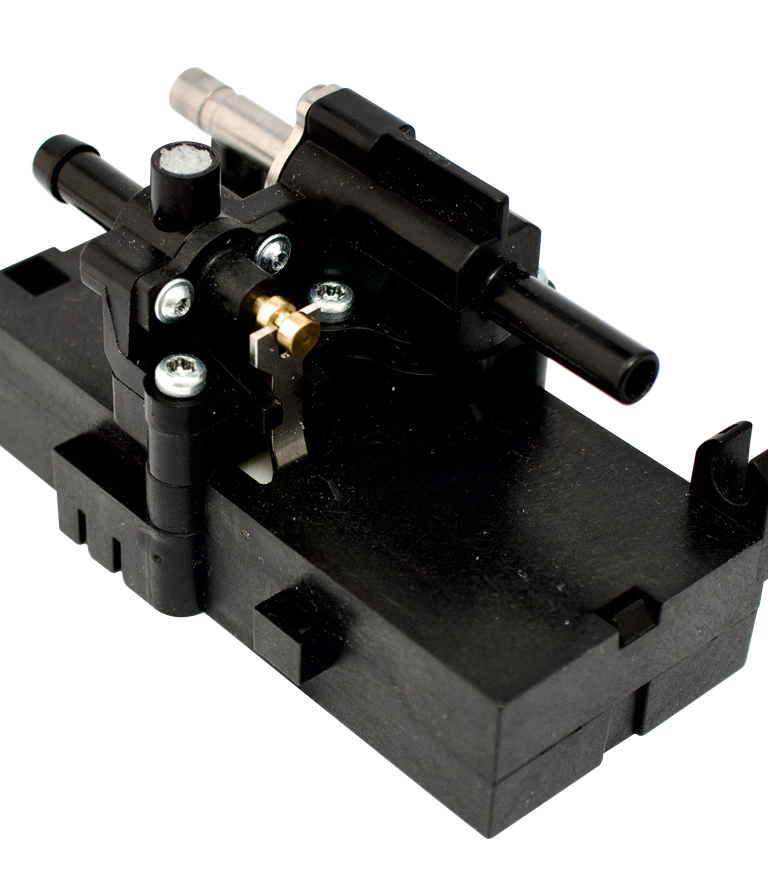

Dolphin Fluidics' proportional Smart valves are 2-way, normally closed, full-separation valves for accurate dosing, mixing and dispensing of liquids and gases. The Air/Gas/Vapour Smart valve has two independent channels; channel 1 proportionally controls an air flow, channel 2 proportionally controls vapour or liquid.

The Smart air/gas/liquid valve has a very low power consumption, up to 20 times lower than conventional solenoid valves, and silent operation, and can be directly interfaced to external pressure, flow or temperature sensors so that it can be closed-loop controlled to the target fluid dynamic function.  Each valve can be easily customised to meet the most stringent functional requirements of different applications, in terms of electronic and mechanical interface, fluidic performance and control electronics and communication on IoT platforms.

DSC0472 1920X700
DSC0472 375X320

Shape memory actuator for accurate control of valve opening and closing.

Totally silent operation.

DSC 1960 1920X700 B

32-bit microprocessor with built-in memory for closed-loop proportional air or gas control.

Customisation of control firmware to suit the application

DSC 0449 375X320 B

Two separate channels with quick-connect terminal





DSC 1954 (1)

Hardware interface for external sensors to enable control loop closure on physical quantities in the circuit.

Stability and accuracy over time

5DSC 1939 1920X700
Mobile

Air filter integrated in valve structure

Technical information

Air / Gas

Pressure range (min ΔP - max ΔP)
0 - 2 bar
Flow (Kv)
CH1 air; CH2 gas/steam
Control
Proportional in closed loop
Operating voltage
5 - 24 VDC
Communication and user interface
Analog, PWM, RS-485, I2C, Status Led
